Ringlock Scaffolding
Ringlock Scaffolding is one of the most popular and widely used scaffold system. Ring lock scaffold suit for all forms of access and support structures in the building and construction industries, ship building, off-shore construction as well as industrial maintenance.
Specification
| Item # | Description | Unit Weight | Surface |
|---|---|---|---|
| RSS050 | Ringlock Vertical 1' 7" | 3.32 | HDG |
| RSS100 | Ringlock Vertical 3' 3" | 5.66 | HDG |
| RSS150 | Ringlock Vertical 4' 11" | 7.89 | HDG |
| RSS200 | Ringlock Vertical 6' 6" | 10.35 | HDG |
| RSS250 | Ringlock Vertical 8' 2" | 12.65 | HDG |
| RSS300 | Ringlock Vertical 9' 10" | 15.03 | HDG |
| RSL063 | Ringlock Horizontal 2' | 2.73 | HDG |
| RSL065 | Ringlock Horizontal 2'2" | 3.12 | HDG |
| RSL091 | Ringlock Horizontal 3' | 4.12 | HDG |
| RSL106 | Ringlock Horizontal 3'6 | 4.68 | HDG |
| RSL115 | Ringlock Horizontal 3'10" | 4.9 | HDG |
| RSL121 | Ringlock Horizontal 4' | 5.26 | HDG |
| RSL152 | Ringlock Horizontal 5' | 6.41 | HDG |
| RSL157 | Ringlock Horizontal 5'2" | 6.36 | HDG |
| RSL182 | Ringlock Horizontal 6' | 7.56 | HDG |
| RSL213 | Ringlock Horizontal 7' | 8.7 | HDG |
| RSL243 | Ringlock Horizontal 8' | 9.85 | HDG |
| RSL274 | Ringlock Horizontal 9' | 11.6 | HDG |
| RSL305 | Ringlock Horizontal 10' | 12.17 | HDG |
| RSBB106 | Ringlock Bay Brace 3'6" x 6'6" | 8.08 | HDG |
| RSBB121 | Ringlock Bay Brace 4' x 6'6" | 8.27 | HDG |
| RSBB152 | Ringlock Bay Brace 5' x 6'6" | 8.71 | HDG |
| RSBB213 | Ringlock Bay Brace 7' x 6'6" | 9.8 | HDG |
| RSBB243 | Ringlock Bay Brace 8' x 6'7" | 10.44 | HDG |
| RSBB305 | Ringlock Bay Brace 10'x 6'6" | 11.82 | HDG |
| RSACB07 | Ringlock Clamp Brace 7' | 10.01 | HDG |
| RSACB08 | Ringlock Clamp Brace 8' | 10.67 | HDG |
| RSACB10 | Ringlock Clamp Brace 10' | 11.99 | HDG |
| RSTL182 | Ringlock Truss Ledger 6' | 12.38 | HDG |
| RSTL213 | Ringlock Truss Ledger 7' | 14.1 | HDG |
| RSTL243 | Ringlock Truss Ledger 8' | 16.35 | HDG |
| RSTL305 | Ringlock Truss Ledger 10' | 20.38 | HDG |
| RSLG426 | Ringlock Lattic Grider 14' | 46.55 | HDG |
| RSLG517 | Ringlock Lattic Grider 17' | 55.59 | HDG |
| RSLG639 | Ringlock Lattic Grider 21' | 68.58 | HDG |
| RSLG852 | Ringlock Lattic Grider 28' | 90.61 | HDG |
| RSSS213 | Stair Stringer 7' | 16.2 | HDG |
| RSST32 | Stair Tread 32" | 8.100 | HDG |
| RSALB | Ringlock Ladder Bracket | 3.18 | HDG |
| RSAL03 | Ringlock Ladder 3' | 6 | HDG |
| RSAL05 | Ringlock Ladder 5' | 10 | HDG |
| RSAL10 | Ringlock Ladder 10' | 15.6 | HDG |
| SSP2 | SSP Plank 2' x 9" | 5 | HDG |
| SSP3 | SSP Plank 3' x 9" | 7 | HDG |
| SSP4 | SSP Plank 4' x 9" | 9 | HDG |
| SSP5 | SSP Plank 5' x 9" | 10.9 | HDG |
| SSP6 | SSP Plank 6' x 9" | 12.8 | HDG |
| SSP7 | SSP Plank 7' x 9" | 14.7 | HDG |
| SSP8 | SSP Plank 8' x 9" | 16.6 | HDG |
| SSP9 | SSP Plank 9' x 9" | 18.48 | HDG |
| SSP10 | SSP Plank 10' x 9" | 20.4 | HDG |
| SBP2 | Sand Blasting Plank 2' | 6.37 kgs | HDG |
| SBP3 | Sand Blasting Plank 3' | 8.21 kgs | HDG |
| SBP4 | Sand Blasting Plank 4' | 10.25 kgs | HDG |
| SBP5 | Sand Blasting Plank 5' | 12.30 kgs | HDG |
| SBP6 | Sand Blasting Plank 6' | 14.35 kgs | HDG |
| SBP7 | Sand Blasting Plank 7' | 17.28 kgs | HDG |
| SBP8 | Sand Blasting Plank 8' | 18.86 kgs | HDG |
| SBP10 | Sand Blasting Plank 10' | 22.80 kgs | HDG |
| ASP111 | Aluma Plank 1'11" | 5.57 kgs | Pre-HDG |
| ASP22 | Aluma Plank 2'2" | 5.92 kgs | Pre-HDG |
| ASP28 | Aluma Plank 2'8 5/8" | 6.99 kgs | Pre-HDG |
| ASP210 | Aluma Plank 2'10 5/8" | 7.29 kgs | Pre-HDG |
| ASP3 | Aluma Plank 3' | 7.49 kgs | Pre-HDG |
| ASP36 | Aluma Plank 3'6" | 8.39 kgs | Pre-HDG |
| ASP310 | Aluma Plank 3'10" | 8.89 kgs | Pre-HDG |
| ASP4 | Aluma Plank 4' | 9.30 kgs | Pre-HDG |
| ASP5 | Aluma Plank 5' | 11.12 kgs | Pre-HDG |
| ASP52 | Aluma Plank 5'2" | 11.39 kgs | Pre-HDG |
| ASP6 | Aluma Plank 6' | 12.93 kgs | Pre-HDG |
| ASP7 | Aluma Plank 7' | 14.72 kgs | Pre-HDG |
| ASP8 | Aluma Plank 8' | 16.55 kgs | Pre-HDG |
| ASP10 | Aluma Plank 10' | 20.11 kgs | Pre-HDG |
| LSP25 | Euro Type Plank 2'5" | 6.79 kgs | HDG |
| LSP35 | Euro Type Plank 3'5" | 8.74 kgs | HDG |
| LSP37 | Euro Type Plank 3'7" | 9.06 kgs | HDG |
| LSP47 | Euro Type Plank 4'7" | 11.06 kgs | HDG |
| LSP52 | Euro Type Plank 5'2" | 12.17 kgs | HDG |
| LSP610 | Euro Type Plank 6'10" | 15.35 kgs | HDG |
| LSP85 | Euro Type Plank 8'5" | 18.58 kgs | HDG |
| LSP101 | Euro Type Plank 10'1" | 22.24 kgs | HDG |
| SBJ24 | Screw Jack (Hollow) | 3.8 | EP |
| SBJ24C | Screw Jack (Solid) | 4.5 | EP |
| SSWBJ24 | Swivel Jack | 7 | EP |

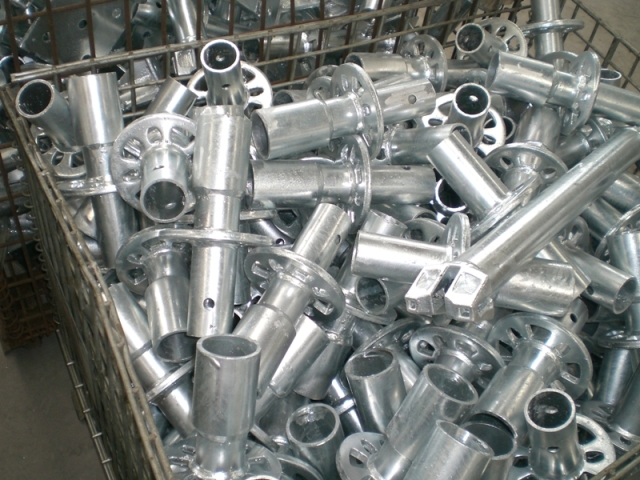

| RBC | Base Collar 0.30M ( 11.8" ) | 2.4 | HDG |
| RSLC12ADT | 12" Castor Adaptor | 4.19 | HDG |
| RSSB031 | Side Bracket 1'0" 1 BOARD | 1.8 | HDG |
| RSSB065 | Side Bracket 2'2" 2 BOARD | 6.4 | HDG |
| RSSB088 | Side Bracket 3'9" 3 BOARD | 8.36 | HDG |
| LLC | Leg Lock | 3.8 | HDG |
| VCL | Crazy Leg | 8 | HDG |
| RSRCLB | Rossetle Clamp | 1.1 | HDG |
| CSCI | Scaffold Case Insert | 43 | HDG |
| CSR | Scaffold Storage Rack | 46 | HDG |
| TCSAC | Spigot Adapter Clamp | 1.57 | HDG |
If you are looking for a scaffolding that is safe, stable and easy to use, our ringlock scaffold will be your best choice. Engineering Design, Customized Sizes & Competitive Price Save Your Cost & Time.
As all components are galvanized and built for increased safety, service life, and resistance to damage, they are perfect for all types of applications and industries.
The Ringlock system can accommodate up to eight connections of combined ledger and braces. Each of these connections can safely carry a load of 11.12kN (2500LBS).
However, the total sum of the ledger loads must not exceed the recommended leg load for the given bracing situation.
Due to our standards and ledgers are fully welded by machine, the products are clean, flat and seamless. In addition, Our welders are well trained by AWSD1.1 to standardize Butt Joint welding, Semi-Auto Fillet Welding and Auto Fillet Welding.
How to Erect Ringlock Scaffolding
- Put Adjustable Base Jack In Place According to Structure Requirement
- Adjust Base Jack to Same Horizontal (Use Jack Nut)
- Assembly Ringlock Base Collars On Base Jacks
- Connect the Base Collars By Ringlock Ledgers
- Leveling the Base Collar Ledgers On the Same Horizontal (By Spirit Level)
- Erect 1st Layer of Ringlock Standard On the Base Collar
- Put All Ledgers on for 1st Layer of Ringlock Standards
- Adjust the Ledgers of 1st Layer Ringlock Standard to the Same Horizontal
- Fixing 1st Layer Ringlock Standards by Ringlock Diagonal and Horizontal Braces
- Put Ringlock Stairs and Planks On
- Erect 2nd Layher Standard and Fixing it By Ringlock Scaffold Ledgers and Braces
- Erect More Layers of Ringlock Uprights and Decks
