ICF Bracing
Engineered to international standards for safety, speed and durability on every job site.
ACE SCAFFOLD manufactures ICF bracing — also called ICF wall bracing or insulated concrete form bracing — a lightweight aluminum strongback system that holds ICF walls plumb during concrete pours and doubles as a safe working scaffold. Our ICF form brace combines oxide/powder-coated steel and aluminum (6063-T5) components — strongback, platform bracket, guardrail post and telescopic brace — for fast, tool-free setup on residential and commercial pours. As an ICF bracing supplier, we provide OEM/ODM and FOB Shanghai delivery.
Key Features
- Widely used
- Only 50 lbs each unit
- Customized color
- OEM available
- Stackable storage rack available
- Made in China guarantee good price

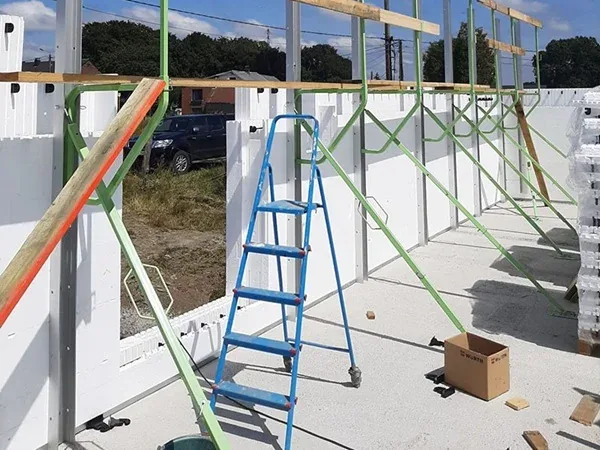

ICF bracing is a temporary support system . It made of a strongback, an adjustable turnbuckle, platform bracket and handrail. It keeps insulated concrete form (ICF) walls straight, level, and plumb during concrete pours, while also doubling as a safe working scaffold for construction crews.
ICF Bracing Application
ICF bracing exceeds the performance demands of today's new construction, decorating and remodeling professionals. Not only can be used inside or outside, it will save you time and money on your next ICF construction project. Our system can be componentized to build what you need.
Save time and money on your next ICF construction project with the lightweight ICF bracing . Versatile and durable enough for use on walls of any height. The system's overall design allows users to align their forms accurately. With a fast and easy setup with a single pin assembly, the full-length aluminum strongback reaches up to 24 ft.
ICF Bracing Specifications
| MODEL | Item | Surface Treatment | Unit Weight |
|---|---|---|---|

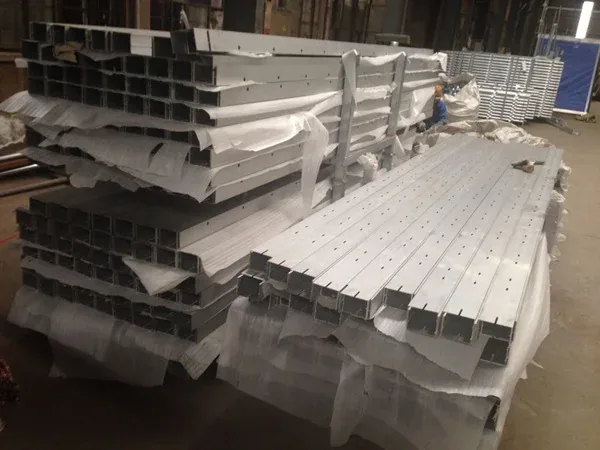

| ICFB-A | Strongback 3000mm, 2.3mm thickness. Aluminum mode:6063-T5 | Oxide | 5.8 kgs |

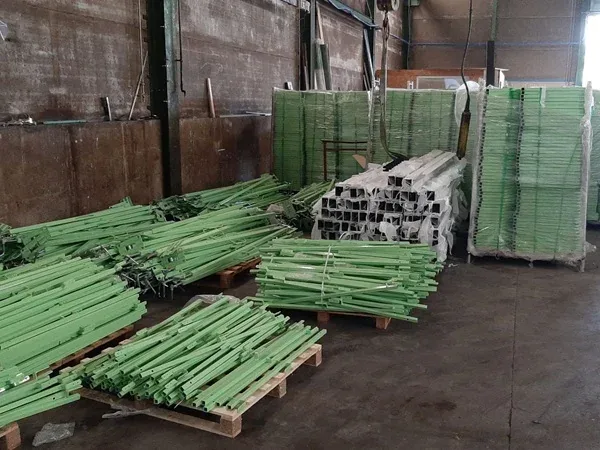

| Platform bracket width 640mm, adjustable height 30cm x N. Steel square tube 32x32x2.5mm | Powder coated | 4.8 kgs | |
| Guardrail post, H1155mm Steel square tube 25x25x2.0mm | Powder coated | 1.7 kgs | |

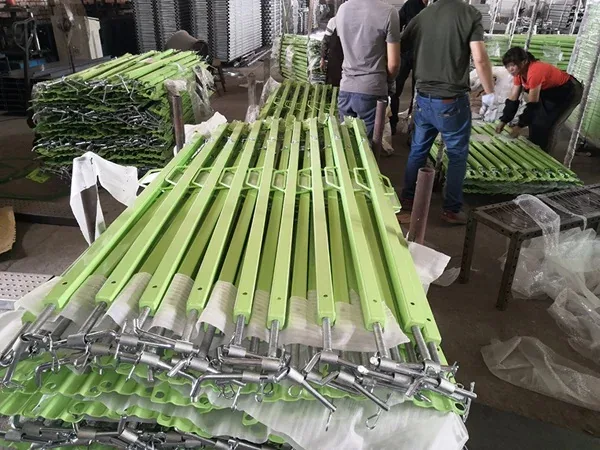

| Telescopic brace adjustable length 1900mm-3300mm Steel square tube . Inner tube 32x32x2.5mm / Outer tube 40x40x2.0mm | Powder coated | 10.5 kgs |
ICF Bracing Components

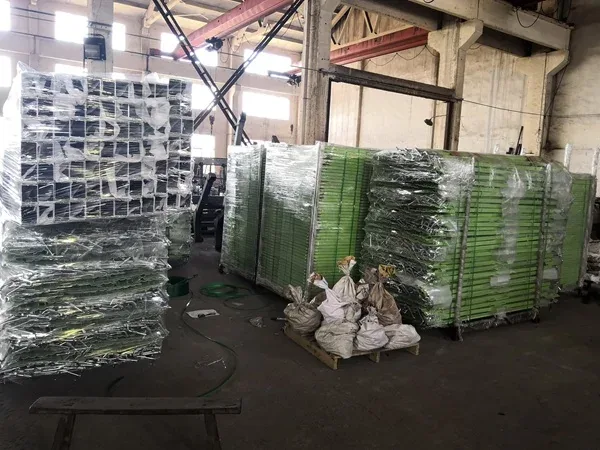

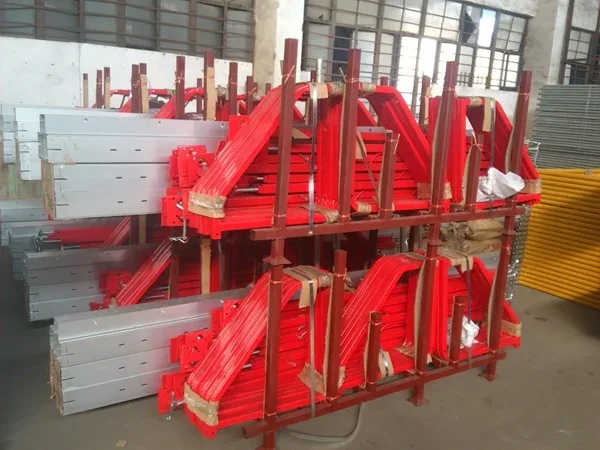

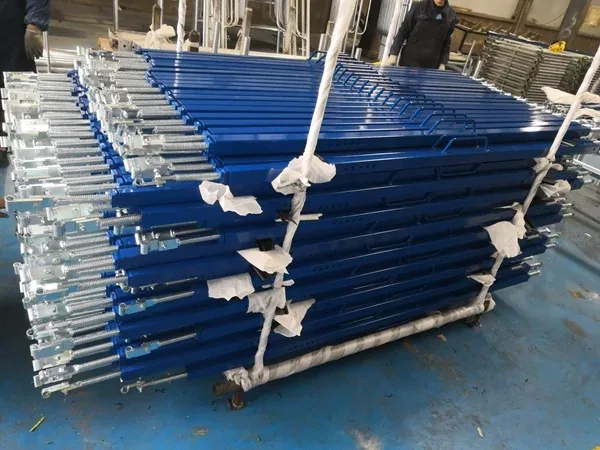

ICF Bracing Picture
